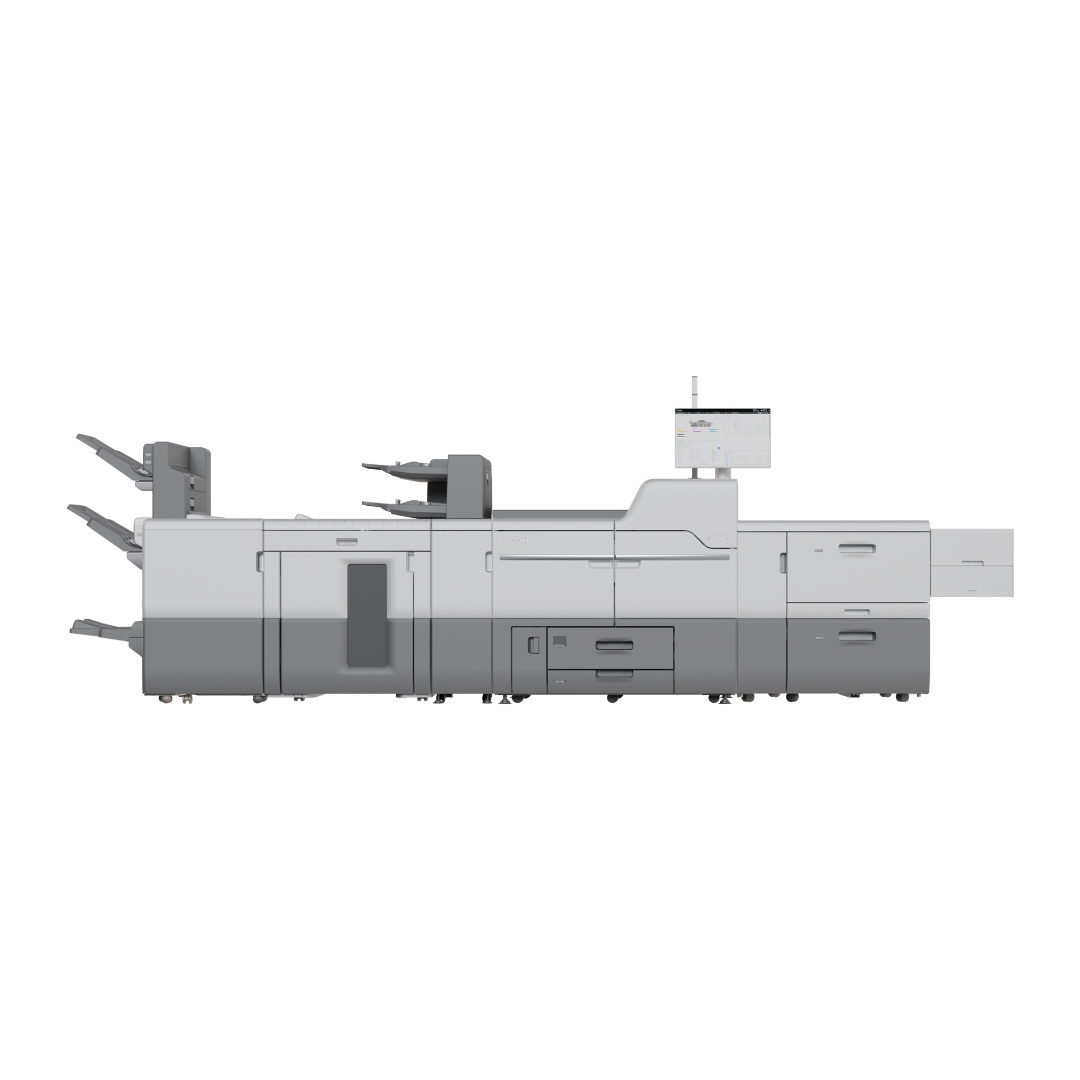

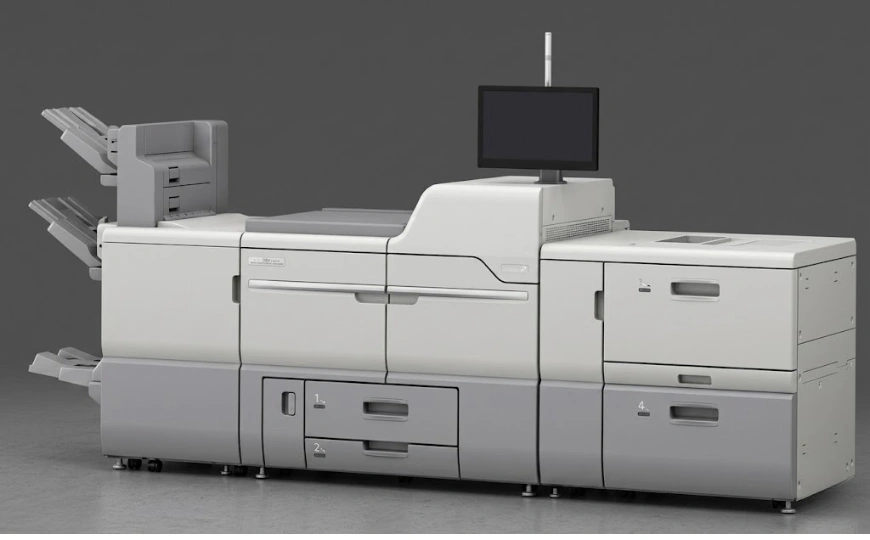

Pro C7500

Colour production printer

  • Upgradeable to 95 ppm
  • 40–470 g/m2
  • 16,200-sheet max input
  • Optional special colour printing

Pro C7500

Categories: , , Tags: ,
Send An Enquiry

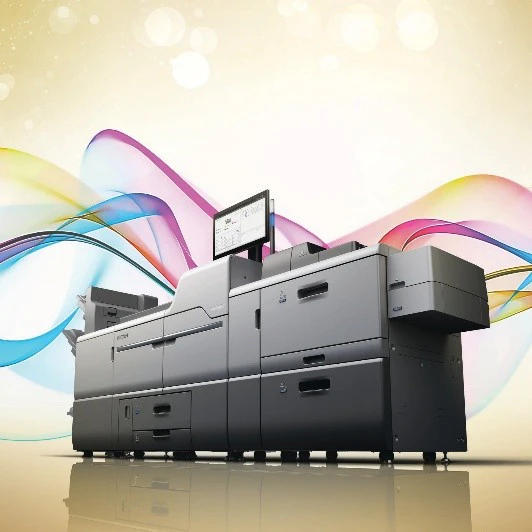

Deliver stunning quality prints

This state-of-the-art digital press consistently delivers offset-like quality prints and accelerates the shift to digital thanks to Ricoh’s advanced VCSEL imaging technology, wide colour gamut, ultra-fine PxP toner, accurate front-to-back registration, and more.

Add the power of special colour

Captivate audiences with Ricoh’s innovative fifth colour option that enables you explore new spectrums, create different effects, and add dazzling appeal and impact to prints.

  1. Broaden your media horizons
    Expand your business opportunities with support for a wide range of media types, sizes, and weights from 40 to 470 g/m2.

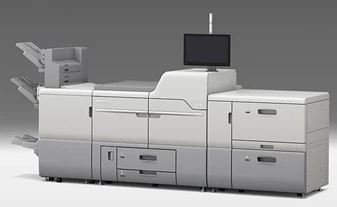

  2. Unwavering productivity
    Meet tight deadlines, deliver outstanding quality, and realise real world gains with impressive performance that can be upgraded to a faster speed with a optional productivity upgrade unit plus support for a comprehensive range of inline finishing solutions.

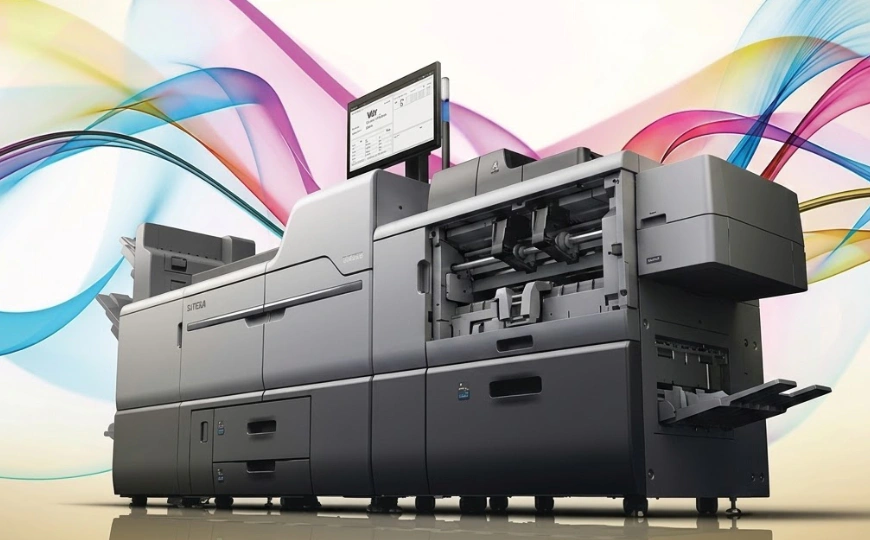

  3. Gain better control
    Streamline your operations with a new engine controller, large touchscreen panel, and new Digital Front End options that enable you to manage Ricoh and Fiery applications via a unified command centre.
  4. Accurate and stable output
    Advanced inline sensor automates adjustments before and during printing for stable, high-quality output. Adjustments can also be performed without specialised skills, reducing the burden on the operator.

Specifications

Functions
Print
Colour
Yes
Printer controller – standard
RICOH GC OS
Printer controller – optional
Color Controller N-50A
Color Controller N-70A
Operation panel
21.5″ Full HD touchscreen

Physical dimensions (WxDxH)—mainframe
1,320 x 910 x 1,218 mm
Physical dimensions (WxDxH)—other

1,320 x 910 x 1,816 mm—mainframe with Attention Light
495 x 530 x 175 mm—A3/11″x 17″ Tray Unit TK5010 (internal)
1,054 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150
1,290 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Vacuum-Feed Banner Sheet Tray Type S9 attached
1,519 x 730 x 1,000 mm—Vacuum-Feed LCIT RT5150 with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached
330 x 730 x 1,000 mm—Bridge Unit BU5010
690 x 561 x 210 mm—Multi-Bypass Tray BY5020
1,290 x 730 x 1,000 mm—Vacuum-Feed Banner Sheet Tray Type S9
1,290 x 730 x 1,302 mm—Vacuum-Feed Banner Sheet Tray Type S9, with cover open
1,519 x 730 x 1,000 mm—Extension Vacuum-Feed Banner Sheet Tray Type S14, when attached to Vacuum-Feed LCIT RT5150
1,090 x 561 x 210 mm—Multi-Bypass Banner Sheet Tray Type S9, when attached to Multi-Bypass Tray BY5020
730 x 1,220 x 1,090 mm—Plockmatic LCT3500 2.0
1,688 x 1,286 x 950 mm—BDT VX 370-1280 Feeder
330 x 730 x 1,010 mm—Buffer Pass Unit Type S9
1,113 x 730 x 1,490 mm—Finisher SR5110
1,334 x 730 x 1,622 mm—Finisher SR5110 with SR5000 Series Output Tray for Banner Sheet Type S6
1,876 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14  (installed on the upper tray)
1,926 x 730 x 1,617 mm—Finisher SR5110 with Extension Output Banner Sheet Tray Type S14  (installed on the lower tray)
1,113 x 730 x 1,490 mm—Booklet Finisher SR5120
1,334 x 730 x 1,622 mm—Booklet Finisher SR5120 with SR5000 Series Output Tray for Banner Sheet Type S6
1,876 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14  (installed on the upper tray)
1,926 x 730 x 1,617 mm—Booklet Finisher SR5120 with Extension Output Banner Sheet Tray Type S14  (installed on the lower tray)
1,115 x 591 x 555 mm—Trimmer Unit TR5050
740 x 730 x 1,350 mm—Cover Interposer CI5040
209 x 730 x 1,000 mm—Multi-Folding Unit FD5030
900 x 730 x 1,010 mm—High-Capacity Stacker SK5040
1,200 x 700 x 1,100 mm—Plockmatic High-Capacity Stacker HCI3500
900 x 680 x 1,060 mm—Plockmatic Multi-Purpose Stacker MPS1260
1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker

Weight—mainframe
590 kg or less—4-station; 610 kg or less—5-station
Weight—other

10 kg or less—A3/11″x 17″ Tray Unit TK5010
230 kg or less—Vacuum-Feed LCIT RT5150
40 kg or less—Bridge Unit BU5010
20 kg or less—Multi-Bypass Tray BY5020
9 kg or less—Vacuum-Feed Banner Sheet Tray Type S9
23 kg or less—Extension Vacuum-Feed Banner Sheet Tray Type S14
9.5 kg or less—Multi-Bypass Banner Sheet Tray Type S9
250 kg—Plockmatic LCT3500 2.0
443 kg—BDT VX 370-1280 Feeder
90 kg or less—Buffer Pass Unit Type S9
135 kg—Finisher SR5110
160 kg—Booklet Finisher SR5120
75 kg—Trimmer Unit TR5050
60 kg—Cover Interposer CI5040
45 kg or less—Multi-Folding Unit FD5030
131 kg or less—High-Capacity Stacker SK5040
135 kg or less—High-Capacity Stacker SK5040 with roll-away cart
250 kg—Plockmatic High-Capacity Stacker HCI3500
65 kg—Plockmatic Multi-Purpose Stacker MPS1260 lift unit
5 kg—Plockmatic Multi-Purpose Stacker MPS1260 docking unit

Minimum space requirements

1,000 mm—front
1,000 mm—left
1,000 mm—right
800 mm—rear

Max monthly volume
240,000 prints
Machine life
14,400,000 prints or 5 years, whichever comes first
Duty cycle
1,500,000 prints—85 ppm; 1,700,000 prints—95 ppm

Supply yields

67,000 sheets—black
67,000 sheets—cyan
67,000 sheets—magenta
67,000 sheets—yellow
19,000 sheets—white
29,200 sheets—neon yellow
29,200 sheets—neon pink
21,500 sheets—invisible red
22,500 sheets—gold
22,500 sheets—silver

Note:CMYK and gold toner yields are measured with the A4/8.75% coverage chart with 50 pages per job. White neon yellow, neon pink, invisible red, and silver toner yields are measured with the A4/15% coverage chart with 50 pages per job.

136,000 sheets per waste toner bottle

Note: Waste toner bottle yield based on A4/8.75% coverage chart with 50 pages per job, 80% colour ratio.

5,000 staples per Type X cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type U cartridge for Booklet Finisher SR5120—saddle stitch staple
5,000 staples per Type X refill cartridge for Finisher SR5110 and Booklet Finisher SR5120—side staple
5,000 staples per Type T refill cartridge for Booklet Finisher SR5120—saddle stitch staple



Standard input capacity (sheets)
2,500
Maximum input capacity (sheets)
16,200
Maximum output capacity (sheets)
13,000
Paper input configuration – standard
1,000-sheet x 2 paper input tray 1, 500-sheet paper input tray 2, 500-sheet bypass tray, duplex unit
Paper input configuration – optional
1,000-sheet A3/11″x 17″ Tray Unit TK5010, 4,400-sheet Vacuum-Feed LCIT RT5150, Bridge Unit BU5010, 500-sheet Multi-Bypass Tray BY5020, 730-sheet Vacuum-Feed Banner Sheet Tray Type S9, 500-sheet Extension Vacuum-Feed Banner Sheet Tray Type S14, 500-sheet Multi-Bypass Banner Sheet Tray Type S9, 3,500-sheet Plockmatic LCT3500, BDT VX 370-1280 Feeder
Paper output configuration – optional
Buffer Pass Unit Type S9, Multi-Folding Unit FD5030, High-Capacity Stacker SK5040, 3,500-sheet Booklet Finisher SR5120, 4,500-sheet Finisher SR5110, Punch Unit PU5030, Trimmer Unit TR5050 for Booklet Finisher SR5120, 400-sheet Cover Interposer CI5040
Paper output configuration – 3rd Party
GBC e-Wire, GBC StreamPunch Plus, Plockmatic HCI3500 High-Capacity Interposer,Plockmatic CT XL, Plockmatic PBM350e, Plockmatic MPS1260 Multi-Purpose Stacker, Plockmatic PBM5035S long sheet stitcher, Plockmatic 5035 long sheet stapler, Plockmatic SBT (Square Back Trimmer), Plockmatic RCT v.3.0
Supported media

Standard paper input tray 1
Plain, Recycled, Prepunched Paper, Textured Paper

Standard paper input tray 2
Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Textured Paper

Bypass tray
Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Envelope

Note:High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, and Synthetic Paper can be fed but quality is not guaranteed.

Optional A3/11″x 17″ Tray Unit
Plain, Recycled, Prepunched Paper, Textured Paper

Optional Vacuum-Feed LCIT RT5150
Plain, Recycled, Prepunched Paper, Transparency, Tab Stock, Translucent Paper, Label Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Envelope, Textured Paper, Tab Stock: Glossy, Tab Stock: Matte, Tab Stock: High Gloss, Envelope: Glossy, Envelope Matte, Envelope: High Gloss, Carbonless Paper

Note:Magnetic Paper, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.

Optional banner sheet tray
Plain, Recycled, Prepunched Paper, Coated: High Gloss, Coated: Glossy, Coated: Matte, Textured Paper, Carbonless Paper

Note:Magnetic Paper, Label Paper, Transparency, Metallic/Pearl Paper, Clear File Folder, and Synthetic Paper can be fed but quality is not guaranteed.

Maximum paper size
330.2 x 1,260 mm
Media weight (g/m2)
40–470

Interfaces – standard
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)—for TotalFlow Advisor connection
2.5GBase-T—for Fiery controller connection
SD slot x 2— for maintenance only
USB 3.0 x 4, USB 2.0 x 2
Interfaces – optional
With Color Controller N-50A
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB 2.0 x 4—rear
USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel

With Color Controller N-70A
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB 3.0 x 7—rear USB 3.0 x 4 ports, x3 ports on the Fiery Quick Touch operation panel

Network protocols – standard
TCP/IP (IPv4, IPv6)
Network protocols – optional
With Color Controller N-50A/N-70A
Windows—TCP/IP
Mac—TCP/IP, EtherTalk (for font download), Bonjour

Print speed colour
85 ppm—A4  LEF
49 ppm—A3 SEF

With optional Productivity Upgrade Unit Type S14
95 ppm—A4 LEF
53 ppm—A3 SEF

Print speed black and white
85 ppm—A4  LEF
49 ppm—A3 SEF

With optional Productivity Upgrade Unit Type S14
95 ppm—A4 LEF
53 ppm—A3 SEF

Printing process
4-drum or 5-drum dry electrostatic transfer system with internal transfer belt
Printing technology
Vertical-cavity surface-emitting laser (VCSEL)
Fusing
Oil-less belt-fusing method
Toner development
PXP-EQ chemical toner, polymerisation
Print resolution
2,400 x 4,800 dpi
Note:Engine print resolution is 1,200 x 4,800 dpi.
Duplex printing
Standard
Envelope printing
Supported—with optional Vacuum-Feed LCIT RT5150
Maximum printable area
320 x 480 mm
323 x 1,252 mm—with optional banner sheet tray
Optional printer controller
Color Controller N-50A and Color Controller N-70A

System
Fiery FS500 Pro

Base operating system
Windows 10 IoT Enterprise 2019 LTSC

CPU
Intel i5-8500—N-50A
Intel Xeon 4214 (Silver)—N-70A

HDD
256 GB SSD SATA for OS; 1 TB HD SATA for data—N-50A
480 GB SSD SATA for OS; 2 TB HD x 2 SATA for data—N-70A

Memory (RAM)
8 GB—N-50A
32 GB—N-70A

Interfaces
Gigabit cross cable
Ricoh data transfer unit cable

Other security features
The OneDFE controller security is based on the EFI Fiery security policy that is compliant with the FS500 Pro system. Contact your local sales company for more information.

Standard
@Remote
TotalFlow Adviser
Optional
InfoPrint Manager
Ricoh ProcessDirector
TotalFlow Prep
TotalFlow Production Manager
TotalFlow BatchBuilder
RICOH Supervisor
TotalFlow Producer
FusionPro VDP Creator
FusionPro Expression
Ricoh Auto Color Adjuster
OL PlanetPress Connect
Fiery Workflow Suite

Power source
220–240 V, 16 A, 50/60 Hz
Power consumption
4,800 W or less—maximum power
35 W or less—Energy Saver Mode (Sleep Mode)
Power consumption—options
1,000 W or less—4,400-sheet Vacuum-Feed LCIT RT5150
200 W or less—Buffer Pass Unit Type S9
60 W or less—Multi-Folding Unit FD5030
150 W or less—Finisher SR5110
150 W or less—Booklet Finisher SR5120
250 W or less, maximum—Trimmer Unit TR5050
75 W or less, average—Trimmer Unit TR5050
110 W excluding peak consumption—Cover Interposer CI5040
Warm-up time
300 seconds or less
Note:Based on 23C˚, rated voltage, and full options.
Sound power level

Mainframe
58.5 dB or less—standby
78.5 dB or less—operating

System
61 dB or less—standby, 85 ppm
64 dB or less—standby, 95 ppm
81.5 dB or less—operating

Reduction of environmentally sensitive materials

RoHS
Less than 0.1 wt%—Lead, PVC, Hexavalent chromium, Cadmium, PBB/PBDE, DEHP, DBP, BBP, DIBP

Energy saving standards
Energy Star 3.2—with OneDFE controller
Safety standards
EN60950-1
IEC60950-1
KC 62368-1
CNS 15998-1
Electromagnetic Compatibility (EMC) standards
EN55032 Class A
EN61000-3-2
EN61000-3-3
EN55035
EN62311
KS C 9832
KS C 9835
KS C 9610-4-2
KS C 9610-4-3
CNS15936 Class A
Identification of plastic components
All plastic components that weigh more than 100 g are identified in accordance with ISO 11469 standards.
Laser standards
EN60825-1
IEC60825-1
